Relationship Between DCT II, DCT VI, and DST VII Transforms
Research Paper / Feb 2014



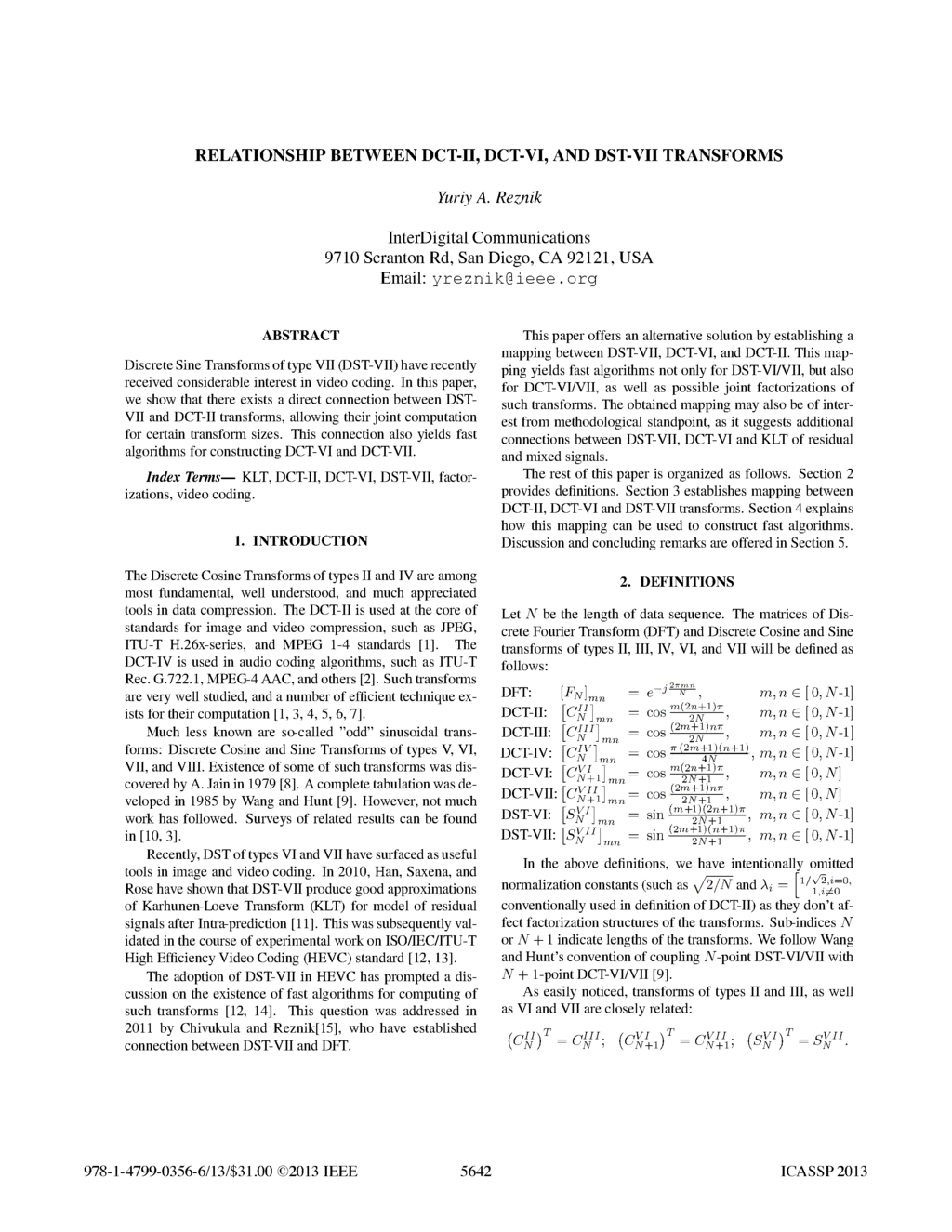

RELATIONSHIP BETWEEN DCT-II, DCT-VI, AND DST-VII TRANSFORMS



Yuriy A. Reznik



InterDigital Communications

9710 Scranton Rd, San Diego, CA 92121, USA



Email: yreznik@ieee.org



ABSTRACT



Discrete Sine Transfonns of type VII (DST-VII) have recently

received considerable interest in video coding. In this paper,

we show that there exists a direct connection between DST­

VII and DCT-II transfonns, allowing their joint computation

for certain transfonn sizes. This connection also yields fast

algorithms for constructing DCT-VI and DCT-VII.



Index Terms- KLT, DCT-II, DCT-VI, DST-VII, factor­

izations, video coding.



1. INTRODUCTION



The Discrete Cosine Transfonns of types II and IV are among

most fundamental, well understood, and much appreciated

tools in data compression. The DCT-II is used at the core of

standards for image and video compression, such as JPEG,

ITU-T H.26x-series, and MPEG 1-4 standards [1]. The

DCT-IV is used in audio coding algorithms, such as ITU-T

Rec. G.722.1, MPEG-4 AAC, and others [2]. Such transforms

are very well studied, and a number of efficient technique ex­

ists for their computation [1, 3, 4, 5, 6, 7].



Much less known are so-called "odd" sinusoidal trans­

fonns: Discrete Cosine and Sine Transfonns of types V, VI,

VII, and VIII. Existence of some of such transfonns was dis­

covered by A. Jain in 1979 [8]. A complete tabulation was de­

veloped in 1985 by Wang and Hunt [9]. However, not much

work has followed. Surveys of related results can be found

in [10, 3].



Recently, DST of types VI and VII have surfaced as useful

tools in image and video coding. In 2010, Han, Saxena, and

Rose have shown that DST-VII produce good approximations

of Karhunen-Loeve Transform (KLT) for model of residual

signals after Intra-prediction [11]. This was subsequently val­

idated in the course of experimental work on ISO/IEC/ITU-T

High Efficiency Video Coding (HEVC) standard [12, l3].



The adoption of DST-VII in HEVC has prompted a dis­

cussion on the existence of fast algorithms for computing of

such transfonns [12, 14]. This question was addressed in

2011 by Chivukula and Reznik[15], who have established

connection between DST-VII and DFT.



978-1-4799-0356-6/13/$31.00 ©2013 IEEE 5642



This paper offers an alternative solution by establishing a

mapping between DST-VII, DCT-VI, and DCT-II. This map­

ping yields fast algorithms not only for DST-VIIVII, but also

for DCT-VINII, as well as possible joint factorizations of

such transfonns. The obtained mapping may also be of inter­

est from methodological standpoint, as it suggests additional

connections between DST-VII, DCT-VI and KLT of residual

and mixed signals.



The rest of this paper is organized as follows. Section 2

provides definitions. Section 3 establishes mapping between

DCT-II, DCT-VI and DST-VII transfonns. Section 4 explains

how this mapping can be used to construct fast algorithms.

Discussion and concluding remarks are offered in Section 5.



2. DEFINITIONS



Let N be the length of data sequence. The matrices of Dis­

crete Fourier Transfonn (DFT) and Discrete Cosine and Sine

transforms of types II, III, IV, VI, and VII will be defined as

follows:



DFT: [FN ] mn

DCT-II: [cy] mn

DCT-III: [cyI] mn

DCT-IV: [C'zn mn

DCT-VI: [Ct�l] mn =

DCT-VII: [Ct�l] mn =

DST-VI: [stI] mn

DST-VII: [SVII] = N mn



e_j2n;;n, m, n E [O, N-l]

cosm(2;�1)7r, m, nE[O, N-l]



(2m+ l)n7r [0 N 1] cos 2N ' m, n E , -7r (2m+l)(n+ l) E [0 N-l] cos 4N ,m, n ,

m(2n+ l)7r [0 N] cos 2N+l ' m, n E ,

(2m+ l)n7r [0 N] cos 2N+l ' m, n E ,



. (m+l)(2n+ l)7r E [0 N-l] Sill 2N+l , m, n , . (2m+l)(n+ l)7r E [0 N-l] Sill 2N+l , m, n ,



In the above definitions, we have intentionally omitted



nonnalization constants (such as y!2/N and Ai = [l/a��

O,



conventionally used in definition of DCT-II) as they don't af­

fect factorization structures of the transfonns. Sub-indices N

or N + 1 indicate lengths of the transfonns. We follow Wang

and Hunt's convention of coupling N -point DST-VINII with

N + I-point DCT-VINII [9].



As easily noticed, transfonns of types II and III, as well

as VI and VII are closely related:



(CII)T _ CIII. (CVI )T _ CVII . (SVI)T _ SVII

N - N , N+l - N+l' N - N .



ICASSP2013







x,



XN.2



XN·l



x,



XN+'



XNo2



1--- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1

i 2N+1-point OCT-II i

, I 1 Yo Yo 1 Xo



y,



y,



YN.2



YN·,



y,



y,



y,



N+1-point

OCT-VI



N -point

DST-VII



X2N•2



YN., X2N•2



Y, x"



Y, x,



Y, x,



x,



r - - - - - - - - - - - - - - - - -

N

(2N-;1 )



-

��i�t-oCT =ii --------------1



I ,

� : 1 Xo

x,



x,



g>

.§:

�

�





2N+1-point

OCT-II



r------ ..



: N-point : :_����V�I_!



2N+1-point

OCT-II



r----:--.



i �t;'�I� :

I _______ !



x,



x,



XN(2N+l)-3 2N+1-point

OCT-II



XN(2N+l)-3





- YN.2



-----------------------------------

(a)



r----:--.



i �t;'�I� :

1 I _______ ! 1

I ' !...---------------------------------------------------:



(b)



Fig. 1. Computing DCT-II of composite sizes: (a) split of 2N + I-point DCT-II into an N + I-point DCT-VI and N-point

DST-VI; (b) computation of DCT-II of length N(2N + 1)_



3. RELATIONSIDP BETWEEN 2N + I-POINT

DCT-II, N + I-POINT DCT-VI, AND N-POINT



DST-VII TRANSFORMS



In this section we prove the following statement.



Theorem 1. The following holds:



) (



where Q2N+l is a matrix, such that when applied to a vector

x, it produces the following sign alterations and reordering:



Xi

( - I ) iXN+ Hi



i = O, _ .. , N,

i = O, . . .  , N  - 1,



(2)



and IN and J N are N x N identity and order-reversal matri­

ces respectively.



Proof Let us consider a 2N + I-long input sequence X

Xo, . . .  , X2N, and apply DCT-II over it:



2N

7f(2n + I)k



L Xn cos 2(2N + 1) , k = 0 ,  . . .  , 2N. n=O



5643



We first look at even output values (k = 2i, i = 0, ... ,N):



�



7f(2n + 1)2i

L Xn cos 2(2N + 1) n=O



�



7f(2n + I)i

L Xn cos 2N + 1 . n=O



We split this sum as follows:



ell � 7f(2n + I)i

X2i - L Xn cos 2N + 1 n=O



2N

� 7f(2n + I)i L Xn cos 2N + 1 n=N+ l



�



7f(2(2N - n) + I)i

L Xn cos 2N + 1 n=N+ l



N-l

( )  � 7f 2n + 1 i L X2N -n cos 2N + 1 ' n=O



which implies that







9-point OFT



Yo Yo



y, y,



y, y,



y, y,



y, y,



y, y,



y, y,



y, y,



y, y,



(a)



'9:"01"10<:1-:11----------------------------------------,

r-5:pointDC-T-VI----O�5---------------------





, , , ,

,,: :0 Xo



_11 X2



x, ��--_H�+,������--�����:� �



Xo



--:3 �

-



-

:



4 Xa



x, -i-..,L-fH.�_+_<i--"-::..:=-=-=-'---'-'i;---__r--"-'--�___:_� x,

:- :



x, -i-���_+_�------��----� __ ���:�'�: � ,



x, �4T--����--����--�-4_,��ir�t+: Xs



x, �4---��, �����

, ,

, " ,



: sln(t ) : : : ______________________________________ J :

---------------------------------------------------



(b)



x,



Fig. 2. Flow-graph of Winograd's factorization of DFT of length 9, and flow-graphs of 9-point DCT-II, 5 -point DCT-VI, and

4-point DST-VII implied by mappings (1,3).



where XC v I is a DCT-VI transform over the first N + 1 ele­

ments of input sequence x, and X,CV1 is a DCT-VI transform

over the following input:



, _ [ X2N-n, xn - 0 ,

if n = 0 ,  . . .  , N - 1,

ifn= N.



We now turn our attention to the odd output values (k =

2i + 1, i = 0 ,  . . .  , N - 1):



�



7r(2n + 1)(2i + 1)

� Xn cos 2( 2N + 1) n=D



( )i+l � . 7r

(N -n)(2i + 1)



-1 � X2N -n Sill --'----'-'---'-

n=D 2N + 1



We split this sum as follows:



XCII ( )i �



. 7r(N -n)(2i + 1)

2i+ 1 + -1 � X2N -n Sill ---'--2N.,....,-'+-'-1---'-n=D



(_l)i+l � . 7r

(N-n)(2i+l) � X2N-n Sill 2N + 1 n=N+l



( )i

N



2:

-l



. 7r(n + 1) (2i + 1)

-1 XN-l-n Sill , 2N +1 n=D



which implies that



where XSVll is an N-point DST-VII transform over a se­

quence



Xn = XN+l+n, n = 0 ,  . . .  , N - 1,



5644



'"

VII and XS is an N -point DST-VII transform over a sequence



Xn=XN-l-n, n=O, ... , N - l.



By combining all these mappings we arrive at expression (1).



We present a flowgraph of the resulting mapping between

DCT-II, DCT-VI, and DST-VII transforms in Figure 1.a. Only

2N additions, permutations and sign changes are needed to

convert output of DCT-VI, and DST-VII into DCT-II.



4. FAST ALGORITHMS FOR COMPUTING DCT-II,

DCT-VI, AND DST-VII



4. 1. Connection to DFT



From (1) it follows that fast computation of DCT-VI and DST­

VII can be reduced to computing subsets of DCT-II. Accord­

ing to Heideman [4] it is also known that computing of DCT­

II of odd numbers is equivalent to computing same-length

DFT. Considering 2N + I-point transforms, we can summa­

rize Heideman's result as follows:



eII

-



H ( [R(F2N+l)]rows D, ... ,N ) H (3) 2N+l - 1 ['2s(F )] 2, 2N+l rows N+l, ... ,2N



where R (F2N+d and '2s (F2N+l) denote real and imaginary

parts of the DFT transform matrix of size 2N + 1, and Hl and

H2 are some permutation and sign-inversion matrices [4].



In combination with (1) this formula shows that an N + 1-

point DCT-VI, an N-point DST-VII and an 2N + I-point

DCT-II can be computed by mapping to a 2N + I-point DFT.

Since many algorithms for computing of DFT are readily

available (see e.g. [16]), this automatically leads to to fast

algorithms for computing DCT-VI and DST-VII.







2N+1-point OCT-II 2N-point OCT-II



(a) (b)



Fig. 3. Conceptual illustration of decompositions of (a) 2N + I-point DCT-II (1) and (b) 2N -point DCT-II (4).



4.2. Examples of fast algorithms for N = 4



We use Winograd DFT module of length 9 shown in Fig­

ure 2.a. This particular factorization comes from [16]. By

using this ftowgraph and mappings (3) and (1) we easily ob­

tain 9-point DCT-I1, 5-point DCT-VI, and 4-point DST-VII.

This is shown in Figure 2.b.



We note that all these algorithms are very efficient in

terms of multiplicative complexity. Thus, obtained 9-point

DCT-II requires only 8 non-trivial multiplications. In con­

trast, the least complex algorithms for computing DCT-ll of

size 8 (nearest dyadic-size) requires 11 multiplications[7].



The obtained 4-point DST-VII is also very efficient: it

uses only 5 multiplications. This factorization is immediately

suitable for implementing an integer approximation of DST­

VII transform defined in HEVC standard [13].



Finally, factorization of a 5-point DCT-VI shown in Fig­

ure 2.b needs only 3 real multiplications and 2 shifts (multi­

plications by factors 1/2).



4.3. Fast computing of transforms of length 2k N (2N + 1)



It is known that a transform of a composite length N = pq,

where p and q are co-prime, can be decomposed into a cas­

cade of p q-point transforms and q p-point transforms fol­

lowed by pq - p - q - 1 additions. This class of techniques

is called Prime Factor Algorithms (PFA) [17, 18].



In Figure 1.b, we show how to compute DCT-II of length

N(2N + 1). This factorization includes 2N + 1 N-point DCT­

II sub-transforms, and additionally N 2N + I-point DCT­

II transforms, which, in turn include N -point DST-VII as

part of their ftowgraph. Hence, a system that implements

and uses N-point DCT-II and DST-VII, can easily compute

an N(2N + 1) transform by reusing them. Same principle

more generally applies to computing transforms of lengths

2k N(2N + 1).



Embedded factorization structures including DST-VII

blocks in ftowgraphs for DCT-II can be of interest to hard­

ware implementations, as it offers potential for reducing the

area, cost, and power usage of a circuit responsible for com­

puting transforms.



5645



S. DISCUSSION AND CONCLUDING REMARKS



We notice that decomposition (1) looks very similar to the

well-known split of even-sized DCT-I1 (see, e.g. [3]):



(4)



where P2N is a certain permutation matrix. This split leads

to recursive construction due to reappearance of DCT-ll in the

upper part of decomposition. In contrast, our decomposition

of 2N + I-point DCT-I1 (1) does not immediately lead to a

recursion.



In Figure 3 we offer conceptual illustration of both de­

compositions (1) and (4). Input data samples are denoted as

YN, ... ,YI,ZO,XI, ... ,XN in a 2N + I-point case (a), and

YN, ... , YI, Xl, ... , XN in 2N-point case (b). It is shown that

the lower (right) portion of DCT-I1 transform becomes es­

sentially equivalent to DST-VII (or DCT-IV) transform over

residual samples Y; = Yi - Xi, while the upper (right) por­

tion of DCT-I1 transform becomes essentially equivalent to

DCT-VI (or DCT-II) transform over sums: x; = Xi + Yi,

(i = 1, . . .  , N). In the 2N + I-point case, the upper trans­

form also absorbs the middle sample ZOo



This illustration may be insightful for understanding

meanings of the involved transforms. For instance, in sig­

nal processing, it is customary to think of DCT-II as an

approximation of KLT for 1-st order Markov source with

high correlation coefficient. Decomposition in Figure 3.a

shows that DST-VII, as well as DCT-VI (with some permuta­

tions and sign changes) can be understood as approximations

of KLT over residual or mixed signals with progressively

increasing distances between samples. Similarly, decom­

position in Figure 3.b shows that in case of a 2N-sample

arrangement, it is DCT-IV and DCT-II that can be understood

as approximations of KLT over residual and mixed signals.



The obtained relationship (1) may also be instrumental in

showing that DST-VII-based coding of Intra-prediction resid­

ual is essentially equivalent to performing L -shaped DCT­

II, where one part of L -shape corresponds to boundary pix­

els, and the other part absorbs pixels predicted based on this

boundary. A design of direction-adaptive transforms based on

similar idea was proposed in [19].







6. REFERENCES



[1] K. R. Rao and P. Yip, Discrete Cosine Transform: Algo­

rithms, Advantages, Applications, Academic Press, Boston,

MA,1990.



[2] R. K. Chivukula and Y. A. Reznik, "Efficient implementation

of a class of MDCTIIMDCT filterbanks for speech and audio

coding applications," in IEEE Int. Con! Acoust., Speech, Sig­

nal Processing (ICASSP), July 2008, pp. pp. 213-216.



[3] V. Britanak, K. R. Rao, and P. Yip, Discrete Cosine and Sine

Transforms: General Properties, Fast Algorithms and Inte­

ger Approximations, Academic Press - Elsevier, Oxford, UK,

2007.



[4] M. T. Heideman, "Computation of an odd-length DCT from

a real-valued DFT of the same length," IEEE Trans. Signal

Processing, vol. 40, no. 1, pp. 54-61, 1992.



[5] C. W. Kok, "Fast algorithm for computing Discrete Cosine

Transform," IEEE Trans. Signal Processing, vol. 45, no. 3, pp.

757-760, 1997.



[6] E. Feig and S. Winograd, "On the multiplicative complexity

of Discrete Cosine Transforms (Corresp.)," IEEE Trans. Infor­

mation Theory, vol. IT-38, pp. 1387-1391, 1992.



[7] C. Loeffler, A. Ligtenberg, and G.S. Moschytz, "Practical

fast I-D DCT algorithms with 11 multiplications," in IEEE

Int. Con! Acoust., Speech, Signal Processing (ICASSP), May

1989, vol. 2, pp. 988-991.



[8] A. K. Jain, "A sinusoidal family of unitary transforms," IEEE

Trans. Pattern Analysis and Machine Intelligence, vol. PAMI-

1, no. 4, pp. 356 -365, Oct. 1979.



[9] Z. Wang and B. R. Hunt, 'The discrete W transform," Applied

Mathematics and Computation, vol. 16, no. 1, pp. 19 - 48,

1985.



[10] S. A. Martucci, "Symmetric convolution and the Discrete Sine

and Cosine Transforms," IEEE Trans. Signal Processing, vol.

SP-42, pp. 1038-1051,1994.



[ll] J. Han, A. Saxena, and K. Rose, 'Towards jointly optimal

spatial prediction and adaptive transform in video/image cod­

ing;' in IEEE Int. Con! Acoust., Speech, Signal Processing

(ICASSP), March 2010, pp. 726-729.



[12] A. Saxena and F. Fernandes, "CE7: Mode-dependent

DCT/DST for intra prediction in video coding," commitee in­

put document JCTVC-D033, ISO/IEC/ITU-T Joint Collabora­

tive Team on Video Coding, Daegu, Korea, January 2011.



[13] B. Bross, W-J. Han, G. Sullivan, J. Ohm, and T. Wiegland,

"High Efficiency Video Coding (HEVC) text specification

draft 6," ITU-T and ISO/IEC JCTVC-H1003, Feb 2012.



[14] F. Fernandes A. Saxena and Y. Reznik, "Fast transforms for

intra-prediction-based image and video coding;' in Data Com­

pression Conference (DCC), March 2013 - submitted.



[15] R. K. Chivukula and Y. A. Reznik, "Fast computing of discrete

cosine and sine transforms of types vi and vii," in Applications

of Digital Image Processing XXXIV, A. G. Tescher, Ed., 2011,

vol. 8135 of Proc. SPlE, pp. 813505-1-14.



5646



[16] C. S. Burrus and T. W. Parks, DFT/FFT and Convolution Al­

gorithms and Implementation, Wiley-Interscience, New York,

1985.



[17] P.P.N. Yang and MJ. Narasimha, "Prime factor decompo­

sition of the discrete cosine transform," in IEEE Int. Con!

Acoust., Speech, Signal Processing (ICASSP), March 1985, pp.

pp. 772-775.



[18] B. G. Lee, "Input and output index mapping for a prime-factor

decomposed computation of discrete cosine transform," IEEE

Trans. Acoust., Speech, Signal Processing, vol. 37, no. 2, pp.

237 - 244, Feb. 1989.



[19] S. S. Tsai C-L. Chang, M. Makar and B. Girod, "Direction­

adaptive partitioned block transform for color image coding,"

IEEE Transactions on Image Processing, , no. 7, pp. 1740-

1755, July 2010.
