Practical Interference Alignment and Cancellation for MIMO Underlay Cognitive Radio Networks with Multiple Secondary Users
Research Paper / Feb 2014 / MIMO

In the underlay cognitive radio approach, secondary users (SUs) are allowed to transmit their messages as long as the negative impact on the performance of the primary user (PU) is below a certain threshold. This paper considers a MIMO underlay cognitive radio network with a single PU and multiple SUs.

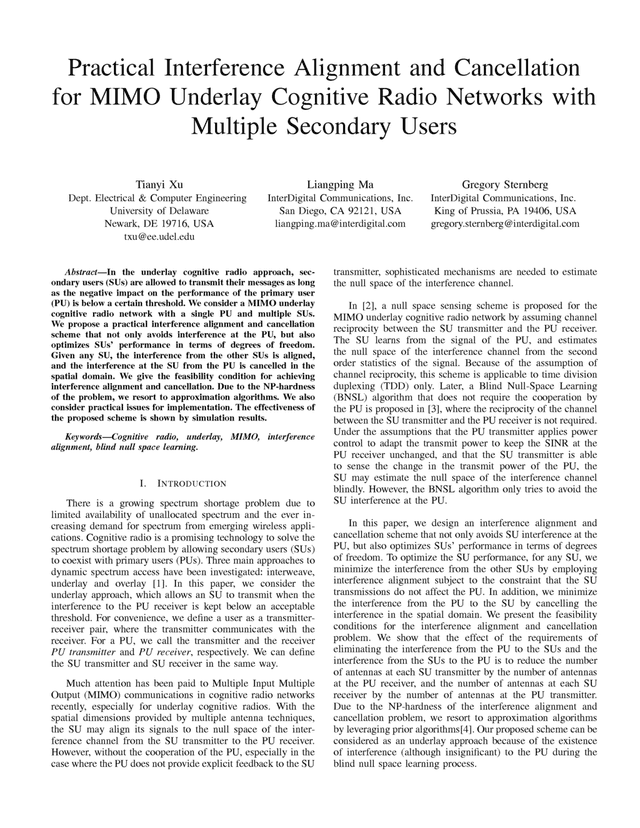

Practical Interference Alignment and Cancellation for MIMO Underlay Cognitive Radio Networks with Multiple Secondary Users Tianyi Xu Dept. Electrical & Computer Engineering University of Delaware Newark, DE 19716, USA txu@ee.udel.edu Liangping Ma InterDigital Communications, Inc. San Diego, CA 92121, USA liangping.ma@interdigital.com Gregory Sternberg InterDigital Communications, Inc. King of Prussia, PA 19406, USA gregory.sternberg@interdigital.com Abstract—In the underlay cognitive radio approach, sec- ondary users (SUs) are allowed to transmit their messages as long as the negative impact on the performance of the primary user (PU) is below a certain threshold. We consider a MIMO underlay cognitive radio network with a single PU and multiple SUs. We propose a practical interference alignment and cancellation scheme that not only avoids interference at the PU, but also optimizes SUs’ performance in terms of degrees of freedom. Given any SU, the interference from the other SUs is aligned, and the interference at the SU from the PU is cancelled in the spatial domain. We give the feasibility condition for achieving interference alignment and cancellation. Due to the NP-hardness of the problem, we resort to approximation algorithms. We also consider practical issues for implementation. The effectiveness of the proposed scheme is shown by simulation results. Keywords—Cognitive radio, underlay, MIMO, interference alignment, blind null space learning. I. INTRODUCTION There is a growing spectrum shortage problem due to limited availability of unallocated spectrum and the ever in- creasing demand for spectrum from emerging wireless appli- cations. Cognitive radio is a promising technology to solve the spectrum shortage problem by allowing secondary users (SUs) to coexist with primary users (PUs). Three main approaches to dynamic spectrum access have been investigated: interweave, underlay and overlay [1]. In this paper, we consider the underlay approach, which allows an SU to transmit when the interference to the PU receiver is kept below an acceptable threshold. For convenience, we define a user as a transmitter- receiver pair, where the transmitter communicates with the receiver. For a PU, we call the transmitter and the receiver PU transmitter and PU receiver, respectively. We can define the SU transmitter and SU receiver in the same way. Much attention has been paid to Multiple Input Multiple Output (MIMO) communications in cognitive radio networks recently, especially for underlay cognitive radios. With the spatial dimensions provided by multiple antenna techniques, the SU may align its signals to the null space of the inter- ference channel from the SU transmitter to the PU receiver. However, without the cooperation of the PU, especially in the case where the PU does not provide explicit feedback to the SU transmitter, sophisticated mechanisms are needed to estimate the null space of the interference channel. In [2], a null space sensing scheme is proposed for the MIMO underlay cognitive radio network by assuming channel reciprocity between the SU transmitter and the PU receiver. The SU learns from the signal of the PU, and estimates the null space of the interference channel from the second order statistics of the signal. Because of the assumption of channel reciprocity, this scheme is applicable to time division duplexing (TDD) only. Later, a Blind Null-Space Learning (BNSL) algorithm that does not require the cooperation by the PU is proposed in [3], where the reciprocity of the channel between the SU transmitter and the PU receiver is not required. Under the assumptions that the PU transmitter applies power control to adapt the transmit power to keep the SINR at the PU receiver unchanged, and that the SU transmitter is able to sense the change in the transmit power of the PU, the SU may estimate the null space of the interference channel blindly. However, the BNSL algorithm only tries to avoid the SU interference at the PU. In this paper, we design an interference alignment and cancellation scheme that not only avoids SU interference at the PU, but also optimizes SUs’ performance in terms of degrees of freedom. To optimize the SU performance, for any SU, we minimize the interference from the other SUs by employing interference alignment subject to the constraint that the SU transmissions do not affect the PU. In addition, we minimize the interference from the PU to the SU by cancelling the interference in the spatial domain. We present the feasibility conditions for the interference alignment and cancellation problem. We show that the effect of the requirements of eliminating the interference from the PU to the SUs and the interference from the SUs to the PU is to reduce the number of antennas at each SU transmitter by the number of antennas at the PU receiver, and the number of antennas at each SU receiver by the number of antennas at the PU transmitter. Due to the NP-hardness of the interference alignment and cancellation problem, we resort to approximation algorithms by leveraging prior algorithms[4]. Our proposed scheme can be considered as an underlay approach because of the existence of interference (although insignificant) to the PU during the blind null space learning process. The remainder of the paper is organized as follows: In Section II, we describe the system model. In Section III, we propose the practical interference alignment and cancellation scheme. In Section IV, we present simulation results. We conclude the paper in Section V. II. SYSTEM MODEL Consider a cognitive radio network with one PU transmitter-receiver pair, and K SU transmitter-receiver pairs. The SUs are allowed to transmit, only when the resulting interference at the PU receiver is below a given threshold. The PU does not cooperate with the SUs, while the SUs may cooperate with each other to achieve better performance. Let the PU transmitter and receiver be equipped with Mp and Np antennas, respectively, and SU transmitter k and receiver k be equipped withMk and Nk antennas, respectively, ∀k = 1, . . . ,K. The channel model for the PU receiver can be expressed as: Yp = HppXp + K∑ k=1 HpkXk + Zp, (1) where Yp ∈ CNp×1 is the received signal vector at the PU receiver; Hpp ∈ CNp×Mp and Hpk ∈ CNp×Mk are the channel matrix between the PU transmitter and the PU receiver, and the channel matrix between the k-th SU transmitter and the PU receiver, respectively, whose entries are assumed i.i.d. with circular normal distribution CN (0, 1); Xp ∈ CMp×1 and Xk ∈ CMk×1 are the signal vector transmitted by the PU transmitter and the k-th SU transmitter, respectively; Zp ∈ CNp×1 is an additive white Gaussian noise vector with i.i.d. CN (0, 1) entries. Similarly, the received signal at the j-th SU receiver is as follows: Yj = HjpXp + K∑ k=1 HjkXk + Zj , j = 1, . . . ,K. (2) III. THE PROPOSED SCHEME We first formulate the interference alignment and cancella- tion problem, and then describe how to obtain the null spaces of the channels from the SUs to the PU in practice, and finally investigate the feasibility conditions and describe how to solve the problem in practice and implementation considerations. A. Problem Formulation For the MIMO cognitive radio network in (1) and (2), we set Xk = Vksk, where Vk is the Mk × dk transmit matrix at the k-th SU transmitter, and sk the dk × 1 symbol vector transmitted by the k-th SU with i.i.d elements and an identity covariance matrix. That is, sk does not necessarily follow a normal distribution, which makes a slight generalization of the assumption in [4]. Furthermore, we assume that the columns of Vk are orthonormal, i.e., V∗kVk = Idk . Let Uk be the Nk × dk interference cancellation matrix at the k-th SU receiver, where the columns of Uk are orthonormal, i.e., U∗kUk = Idk . Accordingly, we may rewrite equations (1) and (2) as follows, Yp = HppXp + K∑ k=1 HpkVksk + Zp (3) U∗jYj = U ∗ jHjpXp + K∑ k=1 U∗jHjkVksk +U ∗ jZj (4) The interference alignment and cancellation problem (called Problem-1) is then: given degrees of freedom (d1, ..., dK), determine the matrices Vk and Uk such that the transmission of the PU is not affected by the SUs, i.e. HpkVk = 0,∀k = 1, 2, · · · ,K, where 0 is an all-zero matrix of appropriate size; and the interference at an SU caused by the PU and other SUs is totally eliminated by the interference cancellation matrix, i.e., U∗jHjp = 0, and U ∗ jHjkVk = 0,∀j 6= k = 1, 2, · · · ,K, where ∗ stands for transpose and complex conjugate. If we choose a feasible K-tuple (d1, . . . , dK) that maxi- mizes the sum of degrees of freedom ∑K k=1 dk, then the solu- tion to the above problem becomes an optimization problem. In fact, the interference alignment feasibility conditions to be discussed in Section III-C can be used to determine such dk’s. The requirement HpkVk = 0 implies that the SU trans- missions Xk = Vksk are in the null space of Hpk, denoted as N (Hpk) = {v ∈ CMk×1 : Hpkv = 0}, which is nontrivial (i.e., containing more than the all zero vector) if Mk > Np. A challenge in the design is how an SU can determine the null space given that the PU does not cooperate with the SUs, and may not even be aware of the existence of the SUs. Recently, a blind null-space learning (BNSL) algorithm is proposed to determine the null spaces[3], which we briefly describe below. B. Blind Null-Space Learning The BNSL algorithm is based on two assumptions: (1) that the PU transmitter adapts its transmission power to maintain the required SINR at the PU receiver in the event of SU in- terference, and (2) that the SU transmitters can detect changes in the transmission power of the PU. The main idea is based on the fact that the null space of Hpk is the same as the null space of Gpk = H∗pkHpk, which is then determined by blind Jacobi eigenvalue decomposition without observing Gpk itself nor the rotated Gpk in the iterative Jacobi eigenvalue decomposition process, hence the name “blind”. The BNSL algorithm begins with A0 = Gpk, and each iteration of the algorithm contains Mk(Mk − 1)/2 learning stages. In each learning stage, the algorithm performs line searches [3] by sending different training signals to obtain a rotation matrix Rl in order to update the matrix Al as Al+1 = R∗lAlRl, such that two off-diagonal elements ofAl+1 are eliminated. After an iteration of Mk(Mk−1)/2 learning stages, every off-diagonal element ofGpk is eliminated once. The algorithm may perform several iterations to improve the accuracy, and at the end, we obtain the matrix A = R∗GpkR, where the off-diagonal elements of A are close to 0 and R is the multiplication of all rotation matrices Rl. Consequently, R is an estimate of the eigenspace of Gpk, while the null space of Gpk is the eigenvector space corresponding to the eigenvalues equal to 0. The BNSL algorithm above is for single SU case. However, it can be easily generalized to multiple secondary user systems, if in the line searches only one SU changes its training signal at each time. Once the SUs learn the null spaces of channels Hpk, we can satisfy the design constraint that the transmissions from the SU do not affect the PU by restricting the SU transmissions to be within the null spaces. C. Feasibility Conditions We first consider the received signal in (3) at the PU receiver. By applying the BNSL algorithm described earlier, each SU can obtain its null space N (Hpk). If we select the columns of the beamforming matrixVk from the null space for each SU, the interference at the PU receiver will be completely removed since HpkVk = 0,∀k. In other words, the existence of the SUs will not affect the PU. Note that to find the required Vk, the dimensions of the null space should not be less than the dimensions of the signal vector, i.e., Mk − Np ≥ dk. In order to guarantee HpkVk = 0,∀k, we let Vk = BkPk, where Bk is a Mk × (Mk − Np) matrix and the column vectors of Bk form an orthonormal basis of the null space N (Hpk), and where Pk is a (Mk−Np)×dk matrix such that P∗kPk = Idk . We then consider the received signal in (4) at the SU receivers. The signal sent by the PU transmitter now serves as the interference to the SUs. In practice, if the SU receiver knows the training sequence of the PU, it can estimate the interference channel Hjp by overhearing the transmission of the training sequence from the PU transmitter to the PU receiver. Assuming that the interference channel Hjp is known at the jth SU receiver, the jth SU receiver may apply an Nj×(Nj−Mp) interference suppression matrixWj , satisfying W∗jHjp = 0, to eliminate the interference from the PU as follows: W∗jYj = K∑ k=1 W∗jHjkVksk +W ∗ jZj , (5) where the column vectors of Wj are orthonormal. Such Wj can be constructed from the null space of H∗jp, because the requirementW∗jHjp = 0 is equivalent to H ∗ jpWj = 0. Since the entries ofHjp are drawn from a continuous distribution, its columns are linearly independent with probability 1 if Nj ≥ Mp0. Note that to find suchWj , the null space ofHjp must be nontrivial, i.e., the dimension of the null space Nj −Mp > 0, which automatically satisfies the prior requirement Nj ≥Mp. For convenience, let Y˜j =W∗jYj , Z˜j =W ∗ jZj , and H˜jk =W ∗ jHjkBk, (6) where we recall thatWj ∈ N (H∗jp) and Bk ∈ N (Hpk). Then the received signal at the j-th SU can be rewritten as Y˜j = K∑ k=1 H˜jkPksk + Z˜j , j = 1, . . . ,K, (7) which can be regarded as an interference channel of a network of K SUs and zero PUs. In this interference channel, the channels H˜jk =W∗jHjkBk automatically guarantee that both the interference from the SUs to the PU and the interference from the PU to the SUs are eliminated. The jth SU receiver can further apply a (Nj −Mp)× dj interference suppression matrix Dj that satisfies D∗jDj = Idj , resulting in D∗jY˜j = K∑ k=1 D∗jH˜jkPksk +D ∗ j Z˜j , (8) where the effective noise D∗j Z˜j = D ∗ jW ∗ jZj follows the same distribution as Zj because the columns of WjDj are orthonormal. The interference alignment and cancellation problem (de- scribed right after (4)) is now reduced to the following standard interference alignment problem (called Problem-2): given de- grees of freedom (d1, ..., dK), find precoding matrices Pk and decoding matrices Dk Pk : (Mk −Np)× dk, P∗kPk = Idk ,∀k = 1, . . . ,K, (9) Dk : (Nk −Mp)× dk, D∗kDk = Idk ,∀k = 1, . . . ,K, (10) such that D∗jH˜jkPk = 0dj×dk ,∀k 6= j (11) rank(D∗jH˜jjPj) = dj ,∀j = 1, . . . ,K, (12) where H˜jk are defined in (6). Note that the effect of the requirement of eliminating the interference from the PU to the SUs and the interference from the SUs to the PU is to reduce the numbers of antennas of the SUs. Specifically, for any SU j, j = 1, . . . ,K, the number of antennas Mj at the transmitter is reduced by the number of PU receive antennas Np, and the number of antennas Nj at the receiver is reduced by the number of PU transmit antennas Mp. If we are able to obtain Pk and Dk that solve the interfer- ence alignment problem, then we can immediately determine Vk = BkPk and Uk =WkUk for (3) and (4), respectively, for the interference alignment and cancellation problem. Now we consider the feasibility question, i.e., whether there exist matrices Pk and Dk that satisfy the interference alignment problem (9) – (12). The feasibility conditions for the interference alignment problem (9) – (12) are only obtained for some special systems [5], [6], [7] and these results can be carried over to here. As an example, in [7], it is shown that in an interference network (without PU of course), if we assume that Mk = M , Nk = N and dk = d for all k, and M and N are divisible by d, then interference alignment is feasible if and only if M + N ≥ d(K + 1). For the problem at hand, consider a special case where Mk = Ms, Nk = Ns, dk = ds,∀k = 1, · · · ,K, with the subscript s indicates secondary users. Invoking the result in [7], we have that if (Ms − Np) and (Ns − Mp) are divisible by d, then the interference alignment problem (9) – (12) and hence the interference alignment and cancellation problem are feasible if and only if (Ms +Ns −Mp −Np) ≥ d(K + 1). D. Approximation Algorithms Another question about the interference alignment problem, Problem-2 (see (9) – (12)), is the practicality of finding the solution numerically by a computer, i.e., whether there exists a computationally efficient algorithm that determines matrices Pk and Dk solving the interference alignment problem (9) – (12). It has been shown [8] that this problem is NP-hard in the number of SUs K. Therefore, the bigger problem, Problem-1, is also NP-hard. In practice, we can only resort to approx- imation algorithms. The details of the practical interference alignment and cancellation algorithm are shown in Algorithm 1. The first approximation algorithm that we use to solve Problem-2 (see (9) – (12)) is the iterative interference align- ment (IIA) algorithm in [4]. The key idea in [4] is to construct a reciprocal interference channel such that the interference alignment condition for the reciprocal interference channel is the same as that of the original interference channel. In the reciprocal interference channel, the roles of the transmitters and receivers are switched, and H¯kj = H˜∗jk is the channel matrix from the j-th SU receiver to the k-th SU transmitter. Note that the reciprocal interference channel is merely a theoretical apparatus, and it has nothing to do with whether the physical channels are reciprocal or not. Denote by P¯k and D¯k the transmit and receive matrices of the reciprocal interference channel, respectively. Let P¯k = Dk and D¯k = Pk, and we have D¯∗kH¯kjP¯j = (D ∗ jH˜jkPk) ∗. Thus, the interference alignment of the reciprocal interference channel is feasible as long as that of the original one is feasible and vice versa, and the transmit and receive matrices can be obtained by exchanging those obtained on the original one. The IIA algorithm begins with arbitrary precoding matrices Pk such that P∗kPk = I. In each iteration, the kth SU receiver computes the interference covariance matrix Qk = K∑ j=1,j 6=k Pj dj H˜kjPjP ∗ jH˜ ∗ kj , (13) where Pj is the total transmit power of SU transmitter j. With the definition of sk in this paper, which slightly gen- eralizes the one in [4] by eliminating the normal distribution assumption, Qk is still closely related to the total interference leakage at receiver k [4]. Denote the interference signal by rk = ∑K j=1,j 6=k H˜kjPj . The expected value of the interference power E[||D∗krk||2] = E[tr(D∗krkr∗kDk)] = tr(D∗kQkDk), where we have used the assumption that the covariance ma- trix of sk is an identity matrix. Due to its non-negativity, the interference power approaches zero if its expected value approaches zero. Therefore, the k-th user tries to minimize tr(D∗kQkDk), which is done by choosing the columns of Dk as the eigenvectors of Qk corresponding to the smallest dk eigenvalues such that D∗kDk = I. Then reverse the communication direction and consider the reciprocal channel. Set P¯k = Dk. Compute the interference covariance matrix Q¯k = K∑ j=1,j 6=k P¯j dj H¯kjP¯jP¯ ∗ jH¯ ∗ kj , (14) where P¯j is the total transmit power of receiver j (which serves as a transmitter in the reciprocal channel), and choose the columns of D¯k as the eigenvectors of Q¯k corresponding to the smallest dk eigenvalues such that D¯∗kD¯k = I. Then reverse the communication direction again and con- sider the original channel. Set Pk = D¯k. Begin the next iteration until the algorithm converges. The IIA algorithm allows for a distributed implementation, because although the interference covariance matrix (13) de- pends on all channel matrices and precoding matrices, it can be estimated as a whole by the k-th user in a distributed manner [4]. The details of the IIA algorithm are shown in Lines 6-14 in Algorithm 1. Algorithm 1 Practical Interference Alignment and Cancella- tion Algorithm for an Underlay Cognitive Radio Network Require: Channel matrices Hkp and Hkj for k, j = 1, 2, · · · ,K Ensure: Determine transmit beamforming matrices Vk and receive beamforming matrices Uk for k = 1, 2, · · · ,K 1: Perform the BNSL algorithm to obtain N (Hpk); 2: Let the columns of Bk be a basis of N (Hpk); 3: Let the columns of Wk be a basis of N (H∗kp); 4: Y˜j =W ∗ jYj , H˜jk =W ∗ jHjkBk; 5: IF the approximation algorithm is the IIA algorithm 6: Initialize Pk as a random (Mk −Np)× dk matrix such that P∗kPk = Idk ; 7: Begin iteration: 8: Compute Qk according to (13); 9: Let the columns ofDk be the eigenvectors corresponding to the smallest d eigenvalues of Qk; 10: Reverse the communication direction, set P¯k = Dk,∀k; 11: Compute Q¯k according to (14); 12: Let the columns of Pk be the eigenvectors corresponding to the smallest dk eigenvalues of Q¯k; 13: Reverse the communication direction, set Pk = D¯k,∀k; 14: Back to 7 until convergence; 15: ELSE IF the approximation algorithm is the Max-SINR algorithm 16: Initialize Pk as a Mk×dk matrix such that the columns are linearly independent; 17: Begin iteration: 18: Compute Tkl,∀k, l according to (16); 19: Compute (Dk)?l,∀k, l according to (15); 20: Reverse the communication direction, set P¯k = Dk,∀k; 21: In the reciprocal network, compute T¯kl,∀k, l; 22: Compute (D¯k)?l,∀k; 23: Reverse the communication direction, set Pk = D¯k,∀k; 24: Back to 17 until convergence; 25: END IF 26: Vk = BkPk,Uk =WkDk; The second approximation algorithm that we consider to solve Problem-2 is the Max-SINR algorithm[4]. The IIA algo- rithm tries to align the interferences in a subspace orthogonal to the desired signal subspace, but makes no effort to maximize the desired signal power in the desired signal subspace. This deficiency is addressed by the Max-SINR algorithm. The other aspects of the Max-SINR algorithm are similar to those of the IIA algorithm. Specifically, in the original channel, the lth column of Dk, denoted by (Dk)?l is set as follows to maximize the SINR of the lth stream at receiver k (Dk)?l = (Tkl) −1Hkk(Pk)?l ||(Tkl)−1Hkk(Pk)?l|| , (15) where (·)?l represents the lth column of matrix (·), and Tkl = K∑ j=1 dj∑ d=1 Pj dj Hkj(Pj)?d(Pj) ∗ ?dH ∗ kj −Pk dk Hkk(Pk)?l(Pk) ∗ ?lH ∗ kk + INk , (16) is the covariance matrix of the interference and noise. In the reciprocal network, set P¯k = Dk,∀k. The interference covari- ance matrix T¯kl is calculated by the substitutions Pj ← P¯j , Pj ← P¯j , Hkj ← H¯kj in (16). (D¯k)?l is calculated by similar substitutions in (15). The details of the Max-SINR algorithm are shown in Lines 16-24 in Algorithm 1. Note that both the IIA algorithm and the Max-SINR algorithm converge [4]. E. Practical Considerations for Implementation We have considered various practical issues for the pro- posed Algorithm 1. Here, we look at those and others in a more holistic view. The first issue is about the the formulation of the interference alignment and canecllation problem in Section III-A. The design constraint that SUs do not affect the PU is stated as HpkVk = 0, where we use an equality. However, in practice, due to the truncation of the digits of real/complex numbers and other various errors (e.g., in channel estimation and power measuring), equality will not be achieved. Therefore, we can replace the equality with an inequality, i.e., HpkVk ≤ �kONp×dk , where ONp×dk is a Np × dk matrix with all entries being one and �k > 0 is a constant determined by the overall error of the system. Similar modifications can be done for U∗jHjp = 0 and U∗jHjkVk = 0, for ∀j 6= k = 1, 2, · · · ,K. The second issue is channel estimation. One of the diffi- culties for interference alignment in general is the need for knowing the global channel state information (CSI). That is, some device (e.g., an eNB in an LTE system) in the network needs to know all channel matrices Hjk. This may not be as undesirable as it seems, because after all, training is generally done to obtain channels Hkk anyway. During the training for SU k, other SU receivers j 6= k can listen due to the broadcast nature of the wireless medium. This way, a single training event will result in K channel estimates. The coordination of training sequence transmission and listening can be achieved by using a low-overhead protocol, for example, one based on TDM scheduling. Thus, getting an estimate of the global CSI incurs only negligible communication overhead. In the event that such coordination is not possible, we can resort to the distributed implementation of both the IIA algorithm and the Max-SINR algorithm [4], where each SU estimates its own channel matrix in the usual way and estimates the interference covariance matrix as a whole. As discussed earlier, the channel matricesHjp can be estimated at SU receiver j by overhearing the PU training sequence transmission and knowing the PU training sequence, and Hpj can be estimated via the BNSL algorithm. The third issue is how the approximation algorithms are run in practice. We reiterate that the use of a reciprocal network is only a theoretical apparatus. The physical channels do not have to be reciprocal. In addition, once an SU transmitter or receiver knows the global CSI, it can run the approximation algorithms itself without incurring any communication over- head. We only need to let one SU transmitter or receiver run the approximation algorithms to obtain matrices Vk and Uk and distribute them to the respective SUs. In contrast, in a distributed implementation of the approximation algorithms, channel reciprocity of the physical channel is needed, and in addition, real transmissions occur in each iteration. Therefore, the communication overhead could be large if the convergence rates are slow. The fourth issue is about the channel coherence time. When the channels are static, the BNSL algorithm, other channel estimation algorithms, and the approximation algo- rithms will work fine. However, in practice, the channels will vary over time, especially for mobile communications. The BNSL algorithm can be augmented to track slow changes in the channels, as shown recently in [9]. For other channel estimation algorithms, as long as the channel coherence time is much larger than K times of the channel training time, the channel estimates can be accurate. For the approximation algorithms, the convergence time should be much less than the channel coherence time. In this regard, the distributed implementations are more restrictive. IV. SIMULATION In this section, we present simulation results for the pro- posed Algorithm 1. We first run the BNSL algorithm to find out the null space of the channel from each SU transmitter to the PU receiver. We then run the approximation algorithm, which is either the IIA algorithm or the max-SINR algorithm. We consider the systems with three, four and five SU transmitters and receivers, respectively, i.e., K = 3, 4 or 5, and let Mp = Np = 2, Mk = Ms = 6 and Nk = Ns = 4 for all k. Two and one independent information streams are sent by the PU and each SU, respectively. For convenience, we assume that the transmit powers of the PU and the SUs are identical. In the figures, we show the performance of the PU as solid lines and those of the SUs as dashed lines. Fig.1 shows the sum rates of the PU and the SUs when the IIA algorithm is applied. The sum rates, when the max- SINR algorithm is applied, are shown in Fig.2. We also show the average rate of a single SU as dotted lines. The numerical results are averaged over 100 channel realizations. Fig.3 and 4 show the bit error rates (BER) of the PU and the SUs using the IIA algorithm and the max-SINR algorithm, respectively. The BPSK constellation is used for the simulations. For reference, we also show the BER performance of the PU, when no SU exists. While both the rate and BER performances of the PU remain almost the same, the performances of the SUs degrade as the number of SUs increases. As discussed earlier, the interference alignment and cancellation is feasible if and only if Ms + Ns − Mp − Np ≥ d(K + 1). Although the setup satisfies the feasibility condition, we observe from Fig.1 and 3 that interference alignment fails with K = 5, probably because of the weakness of the IIA algorithm. Compared to the IIA algorithm, the max-SINR algorithm always gives better rate and BER performances, even when the interference alignment fails at K = 5. However, it requires more computation than the IIA algorithm to converge. For example, in the case that SNR = 8 dB and K = 4, the average time to converge (in practice we decide that the SINR converges if SINR as a function of the number of iterations flattens out) for the max-SINR algorithm is 2.35 times as long as that for the IIA algorithm with the same termination criterion and the same simulation environment. V. CONCLUSION We consider a MIMO underlay cognitive radio network with a single PU and multiple SUs. We propose a practical interference alignment and cancellation scheme that not only avoids interference at the PU, but also optimizes SUs’ per- formance in terms of degrees of freedom. For any SU, the interference from the other SUs is aligned, and the interference from the PU to the SU is cancelled in the spatial domain. We give the feasibility condition for achieving interference alignment and cancellation. Due to the NP-hardness of the problem, we resort to approximation algorithms. We also consider practical issues for implementation. The effectiveness of the proposed scheme is shown by simulation results. REFERENCES [1] A. Goldsmith, S. Jafar, I. Maric´, and S. Srinivasa, “Blind null-space learning for mimo underlay cognitive radio networks,” Proceedings of the IEEE, vol. 97, pp. 894–914, May 2009. [2] H. Yi, “Nullspace-based secondary joint transceiver scheme for cognitive radio mimo networks using second-order statistics,” in IEEE Interna- tional Conference on Communications (ICC), 2010. [3] Y. Noam and A. Goldsmith, “Blind null-space learning for mimo underlay cognitive radio networks,” arXiv:1202.0366, Feb. 2012. [4] K. Gomadam, V. Cadambe, and S. Jafar, “A distributed numerical ap- proach to interference alignment and applications to wireless interference networks,” IEEE Trans. Inform. Theory, vol. 57, pp. 3309–3322, June 2011. [5] G. Bresler, D. Cartwright, and D. Tse, “Feasibility of interference alignment for the mimo interference channel: the symmetric square case,” in Information Theory Workshop (ITW), 2011. [6] C. Wang, T. Gou, and S. Jafar, “Subspace alignment chains and the degrees of freedom of the three-user mimo interference channel,” arXiv:1109.4350, Sept. 2011. [7] M. Razaviyayn, G. Lyubeznik, and Z. Luo, “On the degrees of freedom achievable through interference alignment in a mimo interference chan- nel,” IEEE Trans. Signal Processing, vol. 60, pp. 812–821, Feb. 2012. [8] M. Razaviyayn, M. Sanjabi, and Z. Luo, “Linear transceiver design for interference alignment: Complexity and computation,” IEEE Trans. Information Theory, vol. 58, pp. 2896 – 2910, May 2012. [9] A. Manolakos, Y. Noam, and A. Goldsmith, “Blind null-space tracking for mimo underlay cognitive radio networks,” arXiv:1204.0029, Mar. 2012. 0 2 4 6 8 10 12 14 0 5 10 15 SNR (dB) Su m ra te (b its pe r c ha nn el us e) PU,K=3 SU,K=3 averaged SU,K=3 PU,K=4 SU,K=4 averaged SU,K=4 PU,K=5 SU,K=5 averaged SU,K=5 Fig. 1. Sum rates of PU and SUs using the IIA algorithm, with K=3,4 and 5. 0 2 4 6 8 10 12 14 0 5 10 15 20 25 30 SNR (dB) Su m ra te (b its pe r c ha nn el us e) PU,K=3 SU,K=3 averaged SU,K=3 PU,K=4 SU,K=4 averaged SU,K=4 PU,K=5 SU,K=5 averaged SU,K=5 Fig. 2. Sum rates of PU and SUs using the max-SINR algorithm, with K=3,4 and 5. 6 7 8 9 10 11 12 13 14 10−3 10−2 10−1 100 SNR (dB) BE R PU,K=3 SU,K=3 PU,K=4 SU,K=4 PU,K=5 SU,K=5 PU, K=0 Fig. 3. BERs of PU and SUs using the IIA algorithm, with K=3,4 and 5. 4 6 8 10 12 14 10−5 10−4 10−3 10−2 10−1 SNR (dB) BE R PU,K=3 SU,K=3 PU,K=4 SU,K=4 PU,K=5 SU,K=5 Fig. 4. BERs of PU and SUs using the max-SINR algorithm, with K=3,4 and 5.
