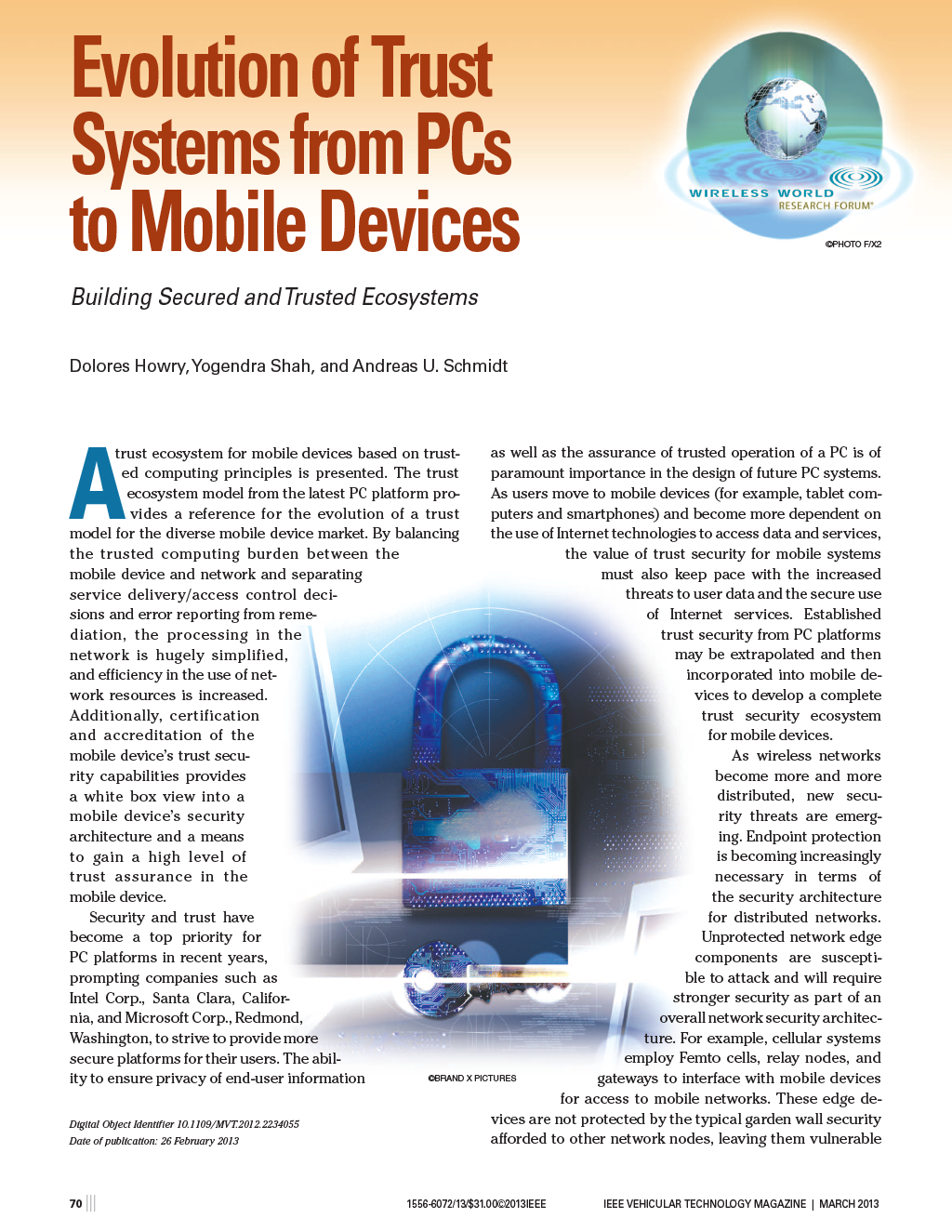

Evolution of Trusted Systems from PCs to Mobile Devices
InterDigital Communications, LLC.
781 Third Avenue
King of Prussia, PA USA
Yogendra Shah, PhD
InterDigital Communications, LLC.
781 Third Avenue
King of Prussia, PA USA
A trusted ecosystem for mobile devices based on trusted
computing principles is presented. The trusted ecosystem model
from the latest PC platform provides a foundation for the
evolution of a trust model for the diverse mobile device market.
By separating and performing fine grained access control, error
reporting and remediation and then balancing the trusted
computing burden between the mobile device and network, the
processing in the network is hugely simplified together with an
increased efficiency in the use of network resources. Certification
of the mobile device trust security capabilities provides a white
box view into a mobile device’s security architecture and a
means to gain a high level of trust assurance in the mobile
Security, Measurement, Performance, Standardization, Design,
Trusted Computing, trusted ecosystem, device integrity, trust
certification, trusted execution environment, secure boot, access
Security and trust have become a top priority for PC platforms in
recent years prompting companies such as Intel and Microsoft to
strive to provide more secure platforms for their users. The
ability to ensure privacy of end user information as well as the
assurance of trusted operation of a PC is of paramount
importance in the design of future PC systems. As users move to
mobile devices (e.g. tablet computers and smart phones) and
become more dependent on the use of Internet technologies to
access data and services, the value of trust security for mobile
systems must also keep pace with the increased threats to user
data and the secure use of Internet services. Established trust
security from PC platforms may be extrapolated and then
incorporated into mobile devices to develop a complete trust
security ecosystem for mobile devices.
As wireless networks become more and more distributed, new
security threats are emerging. Endpoint protection is becoming
increasingly necessary in terms of the security architecture for
distributed networks. Unprotected network edge components are
susceptible to attacks and will require stronger security as part of
an overall network security architecture. For example, cellular
systems employ Femto cells, relay nodes and gateways to
interface with mobile devices for access to mobile networks.
These edge devices are not protected by the typical garden wall
security afforded to other network nodes, leaving them
vulnerable to multiple vectors of attack, impacting the
availability and operational aspects of the wireless networks.
Likewise, mobile device security also needs to be bolstered. Data
stored on mobile devices and the services they access require
protection. Mobile applications provide a variety of services
including services that require a significant level of security such
as online banking and mobile payments. A device infected by
malware undermines the trust assurances the user expects and
can have costly consequences to both the user and the service
provider. Innovations in the PC security model provide the
foundation for the evolution of platform trust security defined by
the Trusted Computing Group (TCG) . PC security
architectures are anchored on Trusted Platform Module (TPM)
based trusted computing technologies, enabling safer and
consistent behavior that offers improved security.
Transitioning the conventional PC trust security model to a
mobile system requires an adaptation of the security architecture
since TCG techniques remain impractical from the standpoint of
application to broad consumer markets. Traditional TCG
technologies place a heavy burden on the networks to ensure the
security of the devices. Wireless network operators are already
burdened by heavy traffic volume that will only worsen as
consumers move to more and more dependence on wireless
communications for their connectivity and with the growth of the
Internet of Things. Mobile devices can benefit from the advanced
trust assurance security features architected for the PC
environment, by evolving and incorporating these into a trusted
ecosystem for mobile systems. Creation of a more practical
approach to trust security is possible by separating access control
decisions from remediation in the network and by balancing trust
processing between the mobile device and the network.
2. CURRENT PC ARCHITECTURE
The latest PC security architecture is based on the Unified
Extensible Framework Interface (UEFI) specification and TCG
technologies, utilizing hardware and software enhancements
leveraged by the Windows 8 OS framework . Figure 1
illustrates the Windows 8 platform integrity architecture. A
secure boot process initiates the platform startup. The trust
assurance in the secure boot process is based on an immutable
Hardware Root of Trust (RoT). The platform incorporates a TPM
to provide a Root of Trust for Measurement (RTM) and a Root of
Trust for Storage (RTS). At boot time, the platform utilizes the
TPM to provide secure measurements and storage for various
architecture components . As identified in Figure 1, the TPM
computes the measurements for the Pre-OS stage components
and then protects the measurements cryptographically for storage
outside the TPM in the measurement log file. At completion of
Stage 1, control is transferred to the kernel and an Early Launch
Anti-Malware (ELAM) component in Stage 2. Additional
measurements are taken according to policies defined for the
platform. These measurements are also protected by the TPM
and stored in the measurement log file. At the completion of the
Windows logon process the platform anti-malware (AM) client is
provided with the measurement log protected by the TPM in
Stage 3. The detailed component measurement report is then sent
to a remote entity to complete the platform attestation process in
AM Client Network
Figure 1. Measured Boot and Anti Malware Components
2.1 UEFI Advantages
The PC platform architecture has been further enhanced in
Windows 8 by the mandatory implementation of UEFI based
firmware security backed by a hardware anchored RoT. The
UEFI firmware resides between the hardware and OS level,
replacing the conventional BIOS in the Pre-OS boot stage in
Figure 1. The UEFI firmware represents a collection of drivers,
OS loaders, tables and applications. It enables the measurement
and reporting of the platform firmware integrity. The UEFI
firmware provides several advantages including the provisioning
of a flexible pre-OS environment enabling applications and
drivers to execute in the boot environment with few constraints
. Additionally, with no functional OS available, UEFI can
provide a full networking protocol stack to enable diagnostics
and firmware upgrades as well as repairs to the operating system,
by contacting and authenticating to a remote server.
2.2 Early Launch Anti-Malware (ELAM)
The ELAM feature provides a Microsoft-supported certificate
based launch of AM software prior to the loading of any third-
party components. The benefit of activating the AM drivers first
is that loading of subsequent drivers is under the control of the
AM software. The ELAM is the first application loaded by the
OS and controls the staged bring-up of the remaining
applications on the platform. The ELAM provides the platform
an ability to control the loading of applications whose integrity
may be in question, as assessed through direct integrity checks of
the firmware and certificates. The ELAM boot driver
measurements are stored in the TPM for later attestation with a
remote AM server.
2.3 Anti-Malware Client
The AM client on the platform is the component that works in
conjunction with the ELAM software to facilitate measurement
reporting. The AM client provides communication with a remote
AM server. The AM client sends a log of the measured
components, collected during the boot process and stored in the
TPM, to the AM Server for remote attestation. The stored
measurements include measurements taken in the Pre-OS stage,
facilitated by UEFI firmware, as well those taken by the ELAM.
The report provided by the AM client contains detailed
component information that is specific to a particular platform.
3. MOBILE DEVICE TRUST SECURITY
3.1 Practical Limitations
Standard platforms such as PCs have a security architecture
based on TCG technologies. The traditional TCG Trusted
Network Connect (TNC) architecture  requires the network
to obtain detailed knowledge of the platform component
measurements, which enables both access control and
remediation. The network must process the reported component
measurement log, from the PC platform, to assess the state of the
platform in order to make an access control decision, a task
similar to a remediation process. This process results in a
heavyweight communications interface between the platform and
the network with extensive processing on the network side.
Though this burden may not be of great concern in PC based
architectures, a migration to high volume consumer markets such
as mobile devices reporting such measurements would place a
tremendous traffic and processing burden on the network.
Furthermore, with hundreds of mobile devices currently available
and new handset designs coming onto the market every 12 to 18
months, the task of maintaining component measurement
databases becomes impractical.
While the TCG TNC technologies have merit in a standard
Intel/Microsoft Windows based PC architecture, the same does
not apply to mobile phone platforms where there is a large
diversity of processors and architectures. Mobile devices have
many varieties of hardware architectures with each chipset
manufacturer having a proprietary processor architecture which
included various ARM variants, Intel ATOM, TI OMAP,
Qualcomm Snapdragon, etc. Therefore the network operator
lacks external visibility into a mobile platform’s proprietary
security architecture and how a particular manufacturer has
implemented trust security capabilities in their mobile platform.
In addition, no evaluation criteria exist to determine the security
architecture of a device or how a secure boot process has been
Permission to make digital or hard copies of all or part of this work for
personal or classroom use is granted without fee provided that copies are
not made or distributed for profit or commercial advantage and that copies
bear this notice and the full citation on the first page. To copy otherwise, or
republish, to post on servers or to redistribute to lists, requires prior specific
permission and/or a fee.
Conference’10, Month 1–2, 2010, City, State, Country.
Copyright 2010 ACM 1-58113-000-0/00/0010 …$15.00.
implemented, resulting in a low level of trust assurance in the
3.2 Evolution of PC Trust Security to Mobile
Decoupling the access control decisions from the remediation
function and distributing the trust processing between the
network and mobile device in a balanced manner provides for an
improved trust processing and access control mechanism.
Evolution of the PC trust security model to such device trust
assessment architecture requires adaptation of the TCG approach
to measurement and reporting. Equipping the mobile device with
the ability to measure the security state of the platform in a
trusted manner and report information suitable for access control
policy decisions reduces the burden the network operator.
Platform validation is the ability for a device to measure its own
“health” (or its integrity) and report the results to the network
operator to efficiently assess the trust state of the platform.
Following an access control decision, failure reports are
forwarded to the device management server. Blending the
remediation function into the device management (DM) server,
where intimate knowledge about the device configuration already
exists, provides for a more efficient mechanism for detailed
Similar to the UEFI and measured boot process in a PC
architecture, platform validation is a process where a secure boot
brings-up the platform through performing a series of trustworthy
self-checks on components of the system and then reports them to
the network to complete the trust assessment and perform access
control decisions. The mobile device performs secure self-
administration of policy based component load control and
validation measurement reporting as part of the secure boot
process, which simplifies the reporting of trust state information
and reduces the burden on the network in performing an
assessment of the trust state. Moreover, the network can notify
the device management server to trigger remediation of a
compromised device. The device management server can further
interrogate the mobile device to isolate component failures
reported during the access control process to perform remediation
under conditions that are beneficial for both the device and the
The proposed mobile device trust security architecture distributes
trust based processing on two core conceptual elements - a secure
boot process anchored on a hardware RoT and a secure execution
environment (SEE) for trust measurement, evaluation and
reporting. The secure execution environment is an environment
that can be trusted to perform security sensitive operations and
store data securely. The ARM Trust Zone is an example of a
prime candidate for inclusion in the mobile device architecture.
The Mobile Trust Module (MTM), which is a TPM tailored for
mobile applications, and the Global Platform Trusted Execution
Environment (TEE)  are other suitable technologies. The
Trusted Software Stack (TSS) that provides a standardized API
to access the TPM is another technology that can be adapted
towards the mobile embedded system environment .
Finally, the lack of visibility into the mobile device security
architecture can be addressed through white box certification.
Certification provides a means to circumvent the issue of
visibility into the security architecture and secure boot process
giving network operators a higher level of trust assurance for the
4. ELEMENTS OF PROPOSED TRUST
Figure 2 provides a view of an ecosystem for remote trust
assessment in mobile devices. At the heart of the mobile
device trust security is a Trust Module incorporating a
SEE anchored on an immutable hardware Root of Trust.
This provides the core architectural basis for the mobile
device trust security model. The strength of the Trust
Module is its ability to execute a policy based platform
bring-up through a chain of trust. The secure mobile
device incorporates independently certified hardware and
software components enabling external entities such as the
network operator to establish trust in the device. A
certified hardware Trust Module provides a layered
approach to device trust certification and a path to meet
the rapid development cycles for products targeted towards
the mobile market. Certified software components provide
additional means to establish trust in the devices to remote
using Trust Module
Certified Code &
Trusted Ref Values
Report Meas. Data
Figure 2. Ecosystem for Establishment of Trust in Mobile
The second element of the trusted ecosystem is the access control
entity. In a cellular wireless system the proposed access control
entity is called a Platform Validation Entity (PVE). The PVE can
be considered an extension to the wireless network’s
Authentication, Authorization and Accounting (AAA) and Home
Subscriber Server (HSS) function and tightly coupled with
authentication procedures. The role of the PVE is to validate the
trust state of the mobile device and make fine-grained access
control decisions based on the results of the integrity checking
measurements and certification information obtained from by the
mobile device. The result of the validation process enables
service and content providers to gain trust in the mobile device to
provide the requested services and content. A description of the
reported functionality is provided in section 5.4.
The third element in the trusted ecosystem is the device
management server. When performing device validation, in the
event of a measurement report indicating a failed functionality,
the PVE informs the device management server of the failure.
The device management server is enhanced to perform
remediation through interrogation with the device management
client on the mobile device to isolate specific failed software
components and provide secure software updates. A detailed
description of the remediation process is provided in section 5.5.
5. SECURE MOBILE DEVICES
Moving beyond the current mobile architectures, the secure
mobile device design provides trust assurance through a white
box view into the internal security architecture of the mobile
device, traceable to trusted third parties. The high level of trust
assurance is achieved through a defined trust evaluation and
certification process for both hardware and software. The
integration of certified hardware and software elements enables
the delivery of secure and trusted mobile devices. Pre-
certification of hardware and software enables mobile device
manufacturers to develop trust certified products while
maintaining the rapid development cycles for a diversity of
5.1 Trust Module Certification
In order to establish trust in a mobile device, the security
architecture of the platform needs to be understood and assessed.
Establishing trust in a mobile device requires an ability to peer
into the platform trust security processing including the RoT and
trust measurement and reporting capabilities. Trust in the Trust
Module may be obtained through an independent trusted third
party test and certification authority. The Trust Module is
capable of performing trusted measurements, secure storage and
maintains the ability to trigger alarms and send reports to the
network based on the integrity check results in the event of
unavailability of a full protocol stack, much like the UEFI in a
PC architecture. Additionally, the device management client is
tightly integrated into the trust system to enable remote network
driven interrogation and remediation.
The certification of the Trust Module can be executed prior to
and independent from the design of the secure mobile device.
Independent hardware testing and certification creates a white
box view of the Trust Module security which can be done in
parallel to the software certification process. In many cases a new
mobile device may not require a new trust module so by layering
the certification process for the mobile devices, manufacturers
can use pre-certified elements to build new platforms leading to
faster time to certification for the end product.
5.2 Software Certification and Signing
Similar to the hardware certification process, the software
certification and signing process also contributes to the complete
white box view of the mobile device’s trust security architecture.
The certification process includes the hashing of software
components to be integrity checked and embedding the signed
values in the form of trusted reference values (TRVs), which are
typically a cryptographic hash of a code block, into the code
release. As in the case of the hardware certification, independent
software testing and certification provides trust assurances of the
complete software security architecture.
The integrity validation procedures require the software to be
compared to TRVs. Similar to the certified measurement of the
RoT in a secure boot operation, the trusted reference values are
the expected results of the measurement of a software
component. The software Integrated Development Environment
(IDE) and Build Release tools are enhanced to provide an
automated mechanism for embedding trust information into
software releases. The software build and code release tools
enable the device processor to extract trust information for
software integrity checking and error reporting . The boot and
program loader use the TRV information embedded in the code
image/components during the build process to perform integrity
check measurements and compare to expected measurements.
Measurements are compared to the embedded TRVs and the
measurement results are logged and associated with functions
being tested through tracing a software component to a function.
5.3 Trusted Assurance through Measurement
The combination of hardware and software certification
processes on the mobile device enables the network to obtain a
detailed view into the security architecture of the device.
Therefore the ability to provide detailed security architecture
information of the mobile device mirrors the security architecture
for Windows 8 based PC platforms. This information can be used
by the Mobile Network Operator (MNO) to establish trust in a
particular mobile device through evaluation of the certification
and tracing back to the trusted third parties and certificate
authorities. In the proposed method the secure platform extracts
embedded trusted reference values and uses the trust module to
verify the integrity of the hardware and software. The secure self-
measurement result reporting along with hardware and software
security credentials establishes trust between the device and
MNOs. The proposed measurement reports differ from the
traditional TCG measurement logs. Instead of sending a
measurement log or a list of component hashes for the network to
further evaluate, a list of platform functionalities is reported.
Each functionality maps to a collection of measureable
components. For example, an integrity check failure of software
components of a Netflix application will result in a failure result
being reported for the Netflix functionality.
This mapping process from a specific component to a function
enables the device to send a platform independent “self-health
check” with trust assurances provided by the security certificates
to enable the network to perform a platform trust validation and
an access control policy decision. This process replaces the
network centric TNC attestation process with a balance of trust
measurement and assessment between device and network. The
network does not need to perform attestation on a reported
measurement log in order to perform an access control decision.
In moving from a remote attestation process to a more
autonomous attestation procedure reduces network traffic and the
network processing burden . More importantly the need for
the network to have a detailed knowledge of the process involved
in creating a measurement log are hugely simplified by having
the mobile device perform this task itself.
5.4 Trust Measurement and Fine Grained
The certification process defined earlier enables the mobile
device to send trusted measurement reports to the network that
enable the network to make fine-grained access control decisions.
The measurement reports differ from traditional attestation
reporting in TNC in that there are no measurements sent in the
report, rather the status of the integrity check. As part of the
secure boot process, the device performs local measurements of
software components. Each component measurement is compared
to the corresponding TRV and a pass or fail result is stored in the
secure execution environment. The trust module applies pre-
installed policies to enable loading of software components based
on the trust measurements. Components that have failed the
integrity check are not loaded and marked by the trust module as
failed. At the completion of the secure boot process, the device
sends the measurement report to the network as part of the
authentication process. The measurement report does not contain
a measurement log as in traditional remote attestation, but rather
a list of failed functionalities represented through a mapping of
failed components . The notion of component to functionality
mapping can be viewed as a physical to logical view of the
software as shown in Figure 3. The physical view corresponds to
the representation of the components in the devices memory map
which includes a start address and a size. The logical view maps
a group of components to the corresponding functionality
performed. For example, the Netflix application can comprise
numerous measureable components that support the Netflix
functionality on the mobile device and any one of these
components may be compromised and fail an integrity check. It
should be sufficient for an access control entity to know that the
NetFlix application was compromised rather than the specific
component of the NetFlix application. This approach distills the
detailed measurements into sufficient information to enable
access control decisions to be completed and at the same time
relieves the network from performing a detailed analysis of the
measurement log to identify the severity of an integrity check
failure and then apply access control policy decisions.
The mapping of component to functionality may not have a one to
one correspondence, but rather multiple components can map to
the same functionality. The component mapping can be device
manufacturer specific since each device can have a unique
component build and memory allocation which represents a
standard functionality across many mobile devices. The network
operator may define the device policies regarding loading and
reporting of failed functionalities and actions to be taken when
encountering an integrity check failure of a component. The
functionalities supported by the mobile device can be grouped to
define a policy required for the trusted and non-trusted execution
of the device as defined by the network operator. For example,
the mobile device may execute trusted and non-trusted
applications in separate environments. The result of the integrity
checking enables gating of components to be loaded.
Components that pass integrity checks are considered trusted,
while those that fail integrity checks are considered non-trusted.
Applications can consist of multiple components but identified
by the functionality they provide. The identification of
functionality enables a level of abstract reporting from the mobile
device without providing unnecessary details of the component
specifics to the network. The results of the integrity
measurements are securely reported along with detailed
certification information to an access control entity in network.
Figure 3. Functionality to Component Mapping
At the end of the boot process, the OS loader performs a
translation from software component to functionality and reports
a detailed functionality measurement report to the Platform
Validation Entity (PVE) in the network including the hardware
and software certification information . Providing the network
with the security capabilities of the mobile device assures the
network that the mobile device can be trusted to perform a secure
platform bring-up and that the reported information is
The PVE uses the fine-grained trust evaluation report to establish
trust in the device and provide access control information to the
network. The access control options may include granting full or
partial access to content and services or to quarantine the device
(no access) and subsequently perform remediation. The network
does not receive any detailed information regarding the
measurements of components on the device but rather a logical
report on the “health” of the device anchored by a hardware
anchored RoT. This information is sufficient to perform access
control on a mobile device without burdening the network.
5.5 Efficient Device Management and
In addition to making access control decisions, the PVE may also
contain policies that can trigger or schedule remediation
procedures in the case of a failure report. In the event
remediation is triggered, the PVE forwards the trust
measurement report to the device management server that
reverse maps the functionality measurement errors to a set of
components on the device. Embedded trust measurement
information in the code build process allows the device
management server to readily identify failed components and
remediate only the failed components. The device management
server in turn performs additional interrogation of the device to
isolate the specific failed component(s). The device management
client on the mobile device is tightly coupled to the trust system
architecture, which enables the device to provide additional
trustworthy integrity measurements at the request of the device
management server. The device management server may chose to
provide a full component update or to further interrogate the
device to isolate errors. These additional integrity measurements
enable the device management server to isolate specific
subcomponents of the failed component. In many cases the
overhead incurred in the interrogation process may be smaller
than a full component update making the process more efficient
in terms of traffic overhead than a complete component update.
Figure 4 illustrates the access control and remediation aspects of
M0 ... ...
... ... ...
... ... ...
... ... ...
Device Firmware and Software Mapping
Certified Code &
Trusted Ref Values
M0 ... ...
... ... ...
... ... ...
... ... ...
Functionality to Component
Figure 4. Device Measurement Reporting and Remediation
6. SUMMARY OF BENEFITS
The trusted ecosystem described in this paper provides numerous
benefits for the various system stakeholders. Migration PC
trusted platform architecture to a secure mobile device provides
the core architectural basis for an embedded mobile device trust
ecosystem. Trust in a mobile device is created through a white
box view, anchored on an immutable and verifiable hardware
Root of Trust that is assured through independent testing and
certification of the platform security architecture. A layered
certification process enables platform developers to achieve the
aggressive time to market requirements for mobile devices
through a faster end product certification. Remotely configured
policies, governed by the network operators, allow flexibility in
trust establishment during the early stages of platform bring-up.
A distributed and balanced trust measurement capability where
the device performs a trustworthy self-assessment along with
higher level measurement reporting to the network unburdens the
network in terms of processing and radio resources. The mobile
device provides the proof of self-test and compromised
functionality in a measurement report to facilitate the network to
perform decisions on fine-grained access control and service
provisioning. Furthermore, the reporting of failed functionality
instead of failed components reduces the size of the measurement
reports and enables the separation of the access control function
from the remediation process. On the device side, the device
management client is tightly integrated into the trust system to
enable remote network driven interrogation and remediation. The
device management server utilizes the measurement report from
the Platform Validation Entity to perform targeted interrogation
to identify which specific software components are compromised
and then to perform efficient remediation. The overall approach
results in a lightweight network protocol, simplified network
processing, and reduced down time for mobile devices.
 A. U. Schmidt, A. Leicher,, I. Cha, Shah, Yogendra, 2010,
Trusted Platform Validation and Management, In
International Journal of Dependable and Trustworthy
Information Systems (IJDTIS).
 A. U. Schmidt, A. Leicher,, I. Cha, 2010, Scaling Concepts
Between Trust and Enforcement, Z. Yan(Ed.), Trust
Modeling and Management in Digital Environments: From
Social Concept to System Development, IGI Global,
Hershey, PA, USA, 20-57.
 Cha, Inhyok, Shah, Yogendra, Schmidt, Andreas U.,
Leicher, Andreas, and Meyerstein, Mike, 2009, Trust in
M2M Communications: Addressing New Security Threats.
IEEE Vehicular Technology Magazine.Vol. 4 Issue 3, 69-
 DuVarney, Daniel C., Bhatkar, Sandeep, and
Venkatakrishnan, V.N. 2003. SELF: a Transparent Security
Extension for ELF Binaries. In Proceedings of the 2003
workshop on New Security Paradigms. (Ascona,
Switzerland, August 18 - 21, 2003).
 Global Platform Device Technology, December 2011, TEE
System Architecture, Version 1.0.
 Microsoft Corporation, September 13, 2011, Trusted Boot:
Hardening Early Boot Components against Malware.
 Microsoft Corporation, March 28, 2012, UEFI and
 Trusted Computing Group, 2007, TCG Architecture
Overview, Specification Revision 1.4.
 Trusted Computing Group, , 2008, TCG Infrastructure
Working Group, Architecture-Part II- Integrity
management, Specification version 1.0 Revision 1.0.
 Trusted Computing Group, 2011, TCG Mobile Abstraction
Layer, Specification Version 1.0 revision 2.03.
 Trusted Computing Group, 2009, TCG Trusted Network
Connect (TNC) Architecture for Interoperability,
Specification 1.4 Revision 4.
 UEFI, 2011, Unified Extensible Firmware Interface
Specification, Version 2.3 Errata E, April 26, 2011.
